Products > Hoists > > Electric Chain Hoist NCH-B type

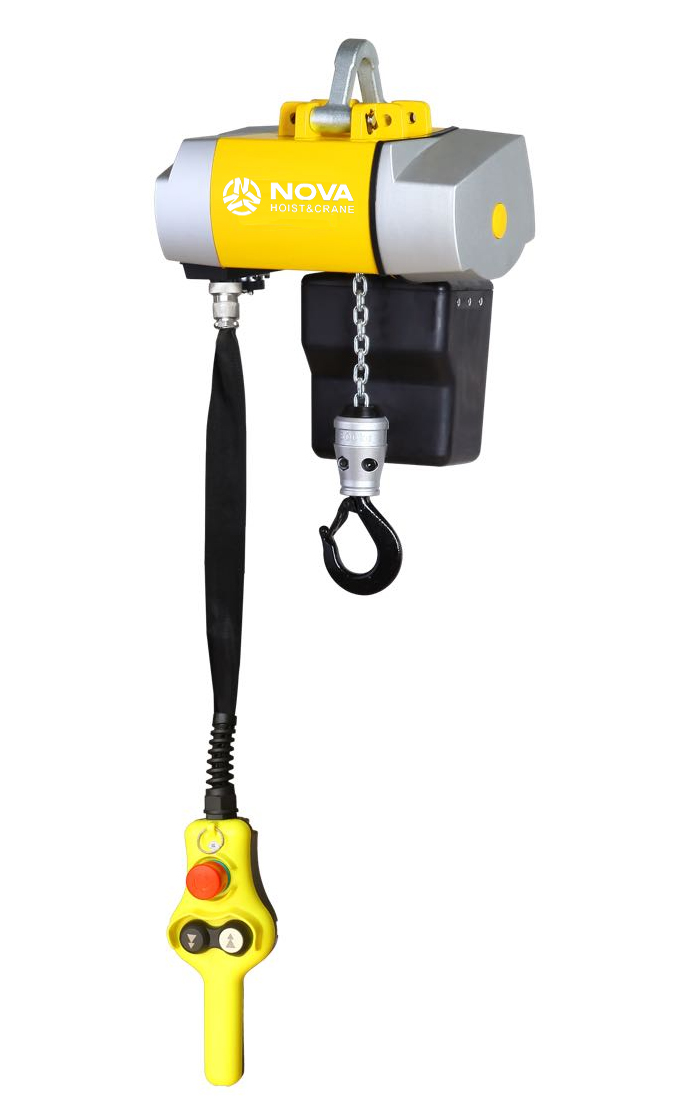

  NCH-B Electric Chain Hoist



NOVA NCH Series
Electric Chain Hoist

Capacities: 125kg to 2,000 kg





Chain hoists in daily use at workstations have to be robust, reliable and low-maintenance.
The NOVA electric chain hoists offer solutions for up to 2 t SWL featuring the high build quality.
The modular design allows a huge range of lifting speeds of up to 20 m/min for hook paths of up to 50 m.

Precision lifting, safety slipping clutch and quick plug-type connectors are as integral a part of the standard configuration as is the tried and tested durable direct control for NOVA chain hoist.


Besides operation with the KBK crane construction kit, NCH-B chain hoists can also be used on I-beam and Patented Track Crane and Monorails. The push-travel trolleys are designed for smooth, low rolling resistance travel. Electric travel drives can also be added to the trolley for heavier loads. These travel drives feature adjustable, two-speed travel as well as smooth starting and stopping.





Technical Data
Model S.W.L.
kg		 Lifting
Speed
m/min		 Lifting
Motor
kW		 Load
Chain
mm		 FEM
Group		 Standard
Lifitng
Height
m		 Weight

kg		 No.
of
Falls
NCH-0125B1F 125 20/5 0.7/0.17 4X12 2m 3 21.3 1/1
NCH0250B1F 250 8/2 0.7/0.17 4X12 2m 3 21.3 1/1
NCH0500B1F 500 6/1.5 0.7/0.17 5X15 1Am 3 22 1/1
NCH1000B2F 1,000 3/0.75 0.7/0.17 5X15 1Am 3 26 2/1
NCH1000B1F 1,000 8/2 1.9/0.45 7X21 2m 3 47.8 1/1
NCH2000B2F 2,000 4/1 1.9/0.45 7X21 1Am 3 52 2/1



Remark: Above performance ratings are based on 50Hz supply

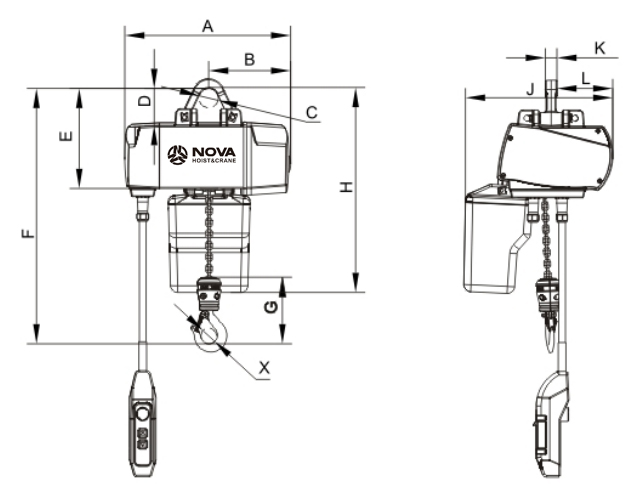

Dimensions mm A B C D E F H J L K X
NCH-0125B1F 345 170 40 77 208 357 425 306 116 24 24
NCH0250B1F 345 170 40 77 208 357 425 306 116 24 24
NCH0500B1F 345 170 40 77 208 388 425 306 116 24 27
NCH1000B2F 345 170 40 77 208 395 425 306 116 24 29
NCH1000B1F 456 204 40 153 285 528 529 250 177 24 48
NCH2000B2F 456 204 40 153 285 528 529 250 177 24 48
