  KBK Alu Series track systems & accesories

NOVA are market leaders in the design and manufacture of cost-effective aluminium overhead crane systems that improve the flow of material and provide easier load handling.
With a wide variety of crane systems, lifting units and components, we are able to configure a bespoke material handling system that meets the unique needs of each individual production line. Our single and double girder crane systems have been designed to make light work of lifting and transporting material along a production line and covering areas.

Features:

  • Material: High tension aluminum alloy 6063-T6 series, surface treatment anodised.
  • Light weight: Min. aluminum track only 5.5kg/m
  • Capacity: Up to 2,000kg
  • Samll Resistance: Small force to move.

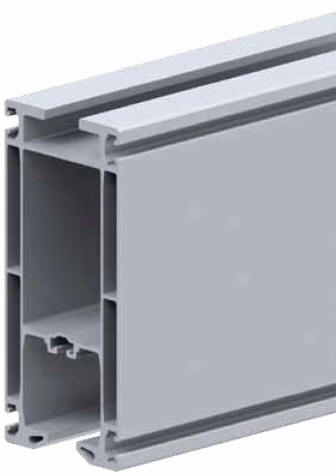

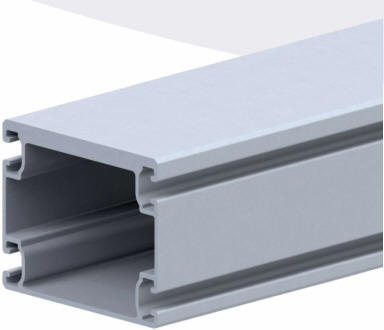

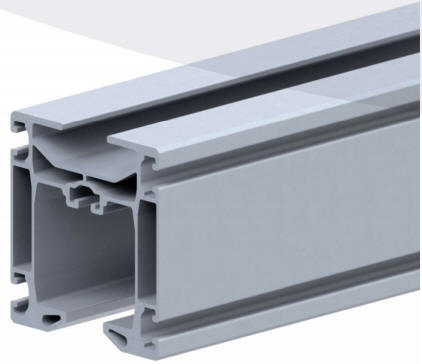

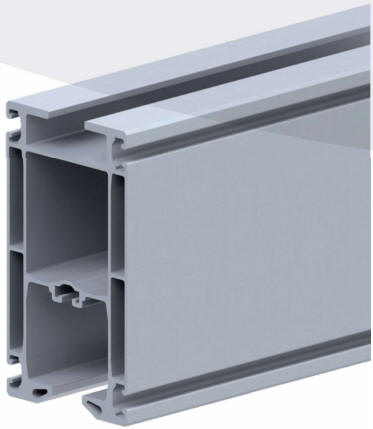

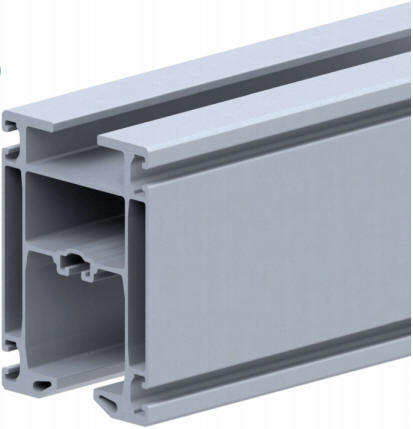

S Profile (A10)



M Profile (A14)

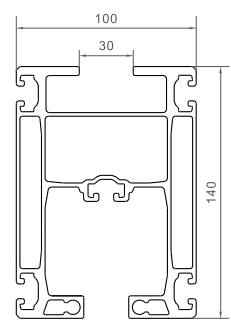

L Profile (A18)

Aluminum profile A22

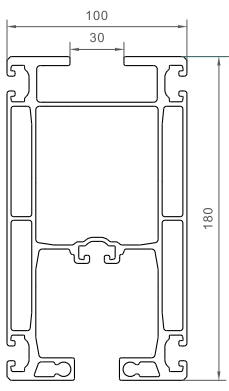

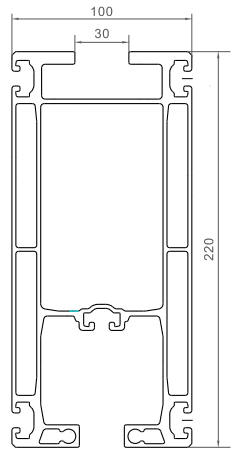

XL Profile (A22)



Reinforce Profile


Technical Data

Size of Track Ly cm4 Lz cm4 Wy cm3 Wz cm3 Weight
S Profile (A10) 235 214 42 44 5.5 kg/m
M Profile (A14) 605 335 85 67 7.2 kg/m
L Profile (A18) 1211 437 133 86 8.8 km/m
XL Profile (A22) 2200 523 197 104 10.2 kg/m

Distance of Girder Suspension

Size of Track Span (m)
80kg 125kg 250kg 500kg 750kg 1200kg 2000kg
S Profile (A10) 3 2.7 2.4
M Profile (A14) 6.1 5.1 3.8 2.7 2.3
L Profile (A18) 8 6.9 5.5 3.9 3.2 2.2 1.8
XL Profile (A22) 10 9 7 5.2 4.3 3 2.4

*The span for your reference only, more information please contact us.  For example: 500kg 8m is available.



 Component for KBK Alu Tracks

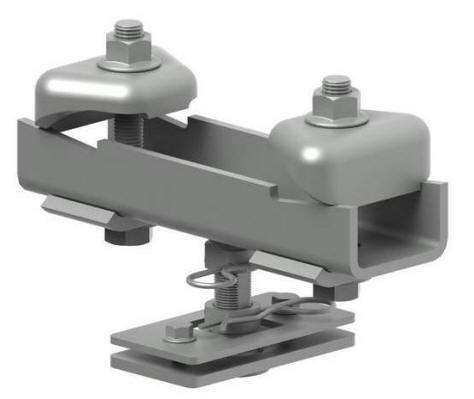

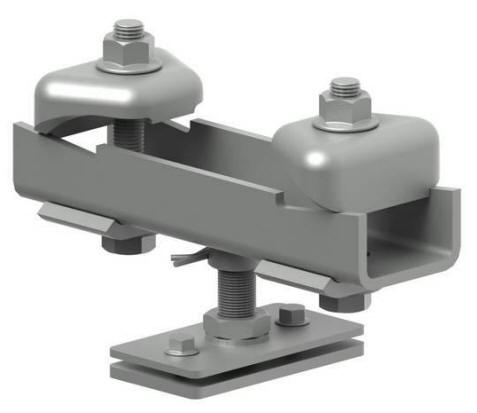

Suspension Bracket (Pendular type)

Load Capacity 2000kg
Beam Width 50-150mm 50-350mm
Height of Bracket 92-132mm
Weight 4.0kg 5.0kg
Max. Ceiling Incline 10 degree
Item Code 01405600 01405700

Suspension Bracket (Rigid type)

Load Capacity 2000kg
Beam Width 50-150mm 50-350mm
Height of Bracket 92-132mm
Weight 3.8kg 4.8kg
Item Code 01405900 01406000

Crane Girder Suspension Bracket

Item Name Bracket 0° Bracket 90°
Item Code 01408900 01408000
Weight 0.6 kg 0.6 kg
01407900
01408000

Saftey System (Fall protection)

Iterm Name for Runway for Crane Girder for Cross Trolley
Weight 1.0 kg 1.5  kg 1.0 kg
Item Code 01409900 01410000 01410100
01409900 for Runway
01410000 for Crane Girder
01410100 for Cross Trolley

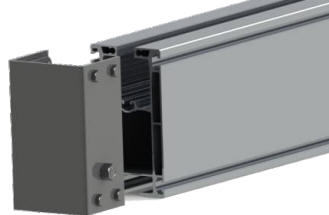

End Cap

Profile S (A10) M (A14) L (A18) XL (A22)
Material Steel Steel Steel Steel
Weight 0.5 kg 0.65kg 0.85kg 1.03kg
Item Code 01406900 01407000 01407100 01407200

Joint Set

Profile S (A10) M (A14) L (A18) XL (A22)
Material Steel Steel Steel Steel
Weight 2.15 kg 2.6 kg 3.1kg 3.65kg
Item Code 01407500 01407600 01407700 01407800

Manual Trolley, Aluminum Body

Item Name Grab Trolley Hinge Trolley
Capacity 600 kg 600 kg
Weight 1.6 kg 1.2 kg
Item Code 01406200 01406400
01406200, Grab Trolley, 600kg
01406400,Hinge Trolley, 600kg

Item Name Tandem Grab Trolley Tandem Hinge Trolley
Capacity 1200 kg 1200 kg
Weight 4.2 kg 3.5 kg
Item Code 01406600 01406500
01406600, Tandem Grab Trolley, 1200kg
01406500, Tandem Hinge Trolley, 1200kg

End Stop

Item Name Fixed End Stop Adjustable End Stop
Weight 0.1 kg 0.19 kg
Item Code 01408200 01408300
01408200, Fxied End Stop
01408300, Adjustable End Stop

Cable Trolley


Middel Trolley
01410300
End Trolley
01410700
Towing Trolley
01411100
